Function:
LPG storage tank (also called lpg tank, lpg collection tank, propane sotrage tank, liquefied petroleum gas storage tank, etc. ) is a specialized pressure vessel engineered for the safe, sealed storage of liquefied petroleum gas (LPG)—a flammable hydrocarbon fuel mixture primarily composed of propane and butane, in its liquefied state under moderate pressure and ambient temperature.
Features:
---- Advanced technical, high quality material, steady performance and simple operation;
---- The all-new U-shaped tank design features a short rear overhang and lightweight body.;
Specitfication:
LPG Storage Tank 90 m³
|
Tank Information
|
Tank capacity
|
90 m³
|
| Filling fluid |
LPG |
| Tank material |
Q345R |
| Design pressure |
1.61 Mpa |
| Max working pressure |
1.61 Mpa |
| Design temperaturer |
Less than 50 degree |
| Other equippments |
Equipped with level gauge to show balance quantity inside tank, pressure gauge,thermometer, safety valve, etc. |
| Design service year |
20 years |

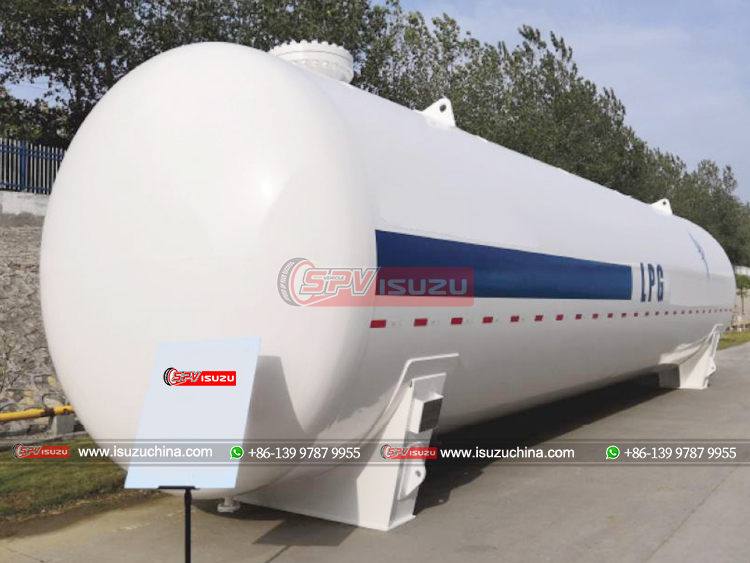

90 m³ LPG Storage Tank
***Other Type of LPG Storage Tank***

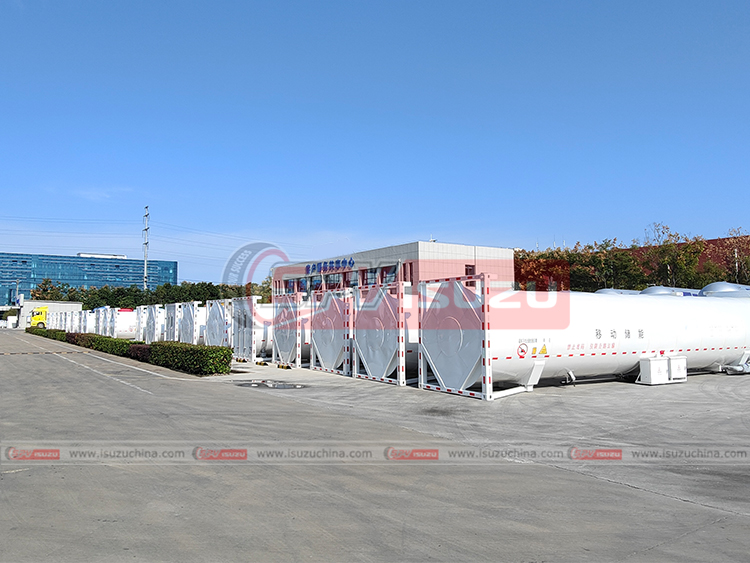

LPG Storage Tank

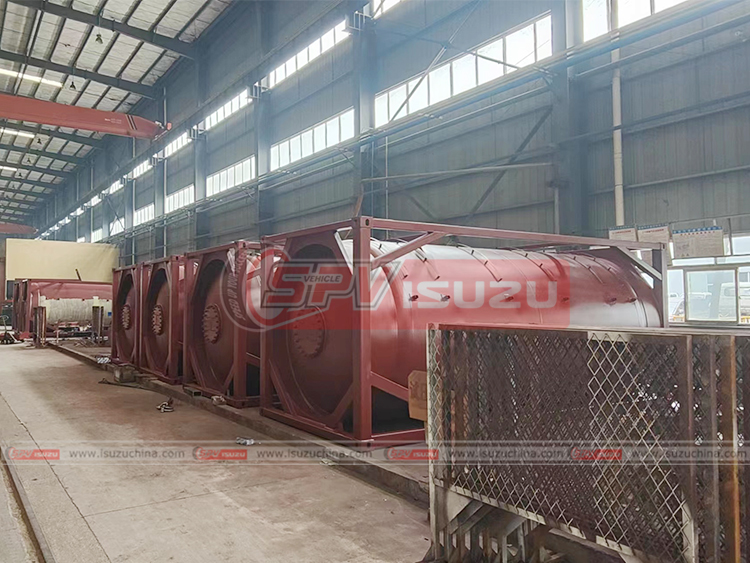

LPG Tank Workshop
LPG Spherical Storage Tank
