Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.

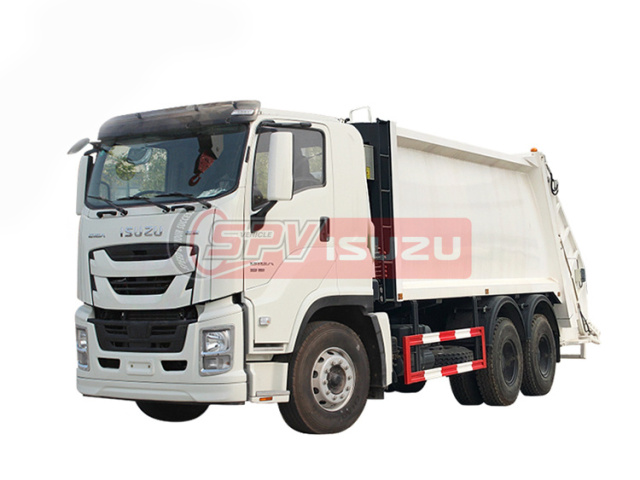

| Refuse Collection Truck ISUZU (18 m³ garbage compactor truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 10150 * 2500 * 3500 mm | |
| GVW / Kerb Weight | 25,000 kg / 14,800 kg | |
| Cab | Cab Capacity | 2 persons allowed with 1 sleeper |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 350 Hp (257 KW) | |
| Displacement |
9839 ml |
|
| Emission Standard |
Euro V |
|
| Chassis | Drive Type |
6X4, left hand drive |
| Transmission |
12 speed forward, 2 reverse |
|
| No. of Axles |
3 |
|
| Tyre Specification |
315/80R22.5 |
|
| Tyre Number |
10 tyres and 1 spare tyre |
|
| Max Speed |
95 km/h |
|
| Paint |
Metallic paint |
|
| Superstructure |
Waste Box Capacity |
18 m³ |
| Waste Box Material |
Carbon steel |
|
| All other standard accessories: Tool kit, English manual…… |
||
| Optional | **Various rear loading mechanism: container lifting; hopper flip; skip loader… **Electronic operating system |
|
