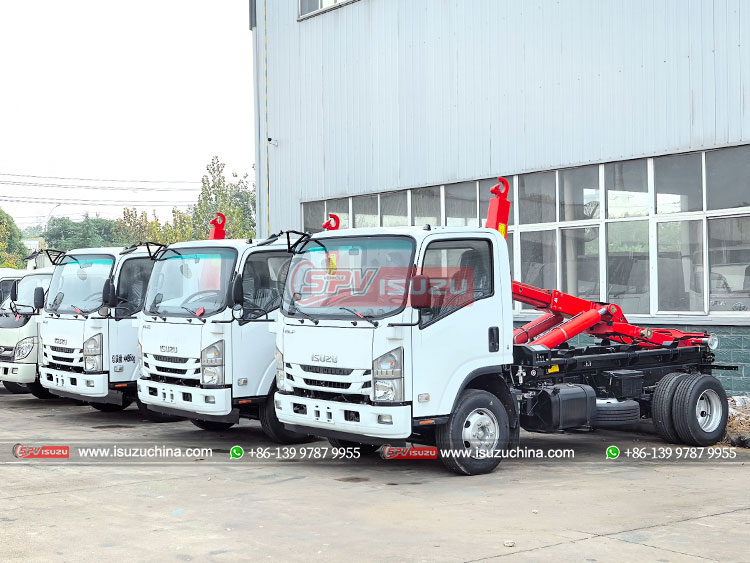

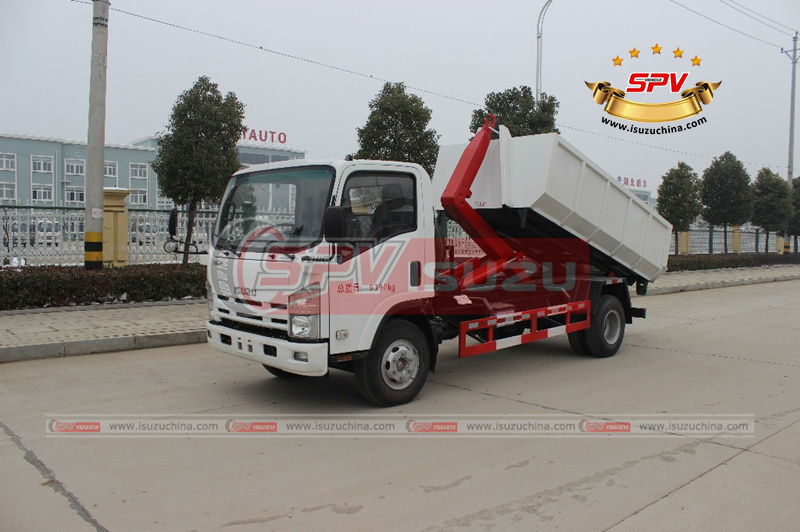

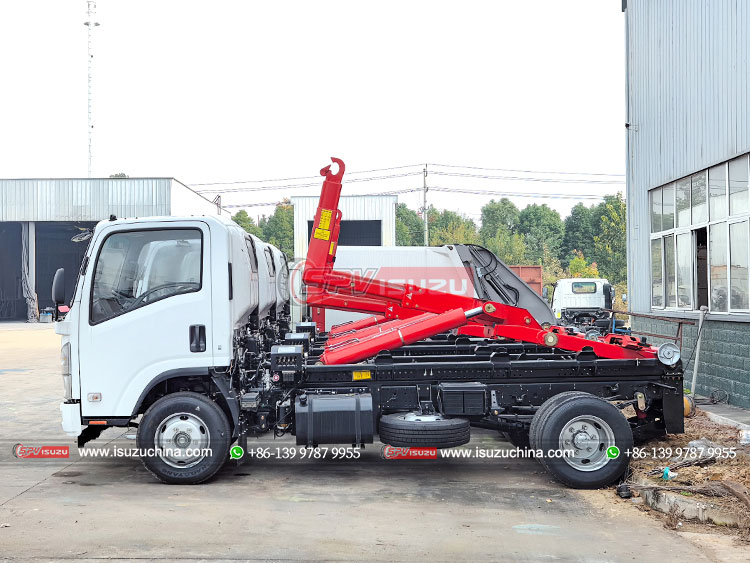

| Hook Lift Garbage Truck ISUZU (5 m³ garbage collection truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6100 * 2200 * 2400 mm | |
| GVW / Kerb Weight | 8,300 kg / 4,600 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 120 Ps (88 KW) | |
| Displacement |
2999 ml |
|
| Emission Standard |
Euro VI |
|
| Chassis | Drive Type |
4X2, left hand drive |
| Transmission |
ISUZU manual, 5-speed forward, 1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
235/75R17.5 |
|
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
95 km/h |
|
| Paint |
Metallic paint |
|
| Superstructure |
Loading Capacity |
5 CBM |
| Dustbin Material |
Anti-corrosive Steel |
|
| Hydraulic System |
Chinese top brand multi-way valve, cylinders |
|
| Control Method |
Manual Control, remote control as optional |
|
| Self-discharging Incline Angle |
50° |
|
| Lifting Time |
≤60S |
|
| Unloading Time |
≤60S |
|
| The hook loader consists of underframe, linkage frame, fixed arm, telescopic arm, hook arm, locking system, hydraulic system …….. |
||
| All other standard accessories: Tool kit, English manual…… |
||
