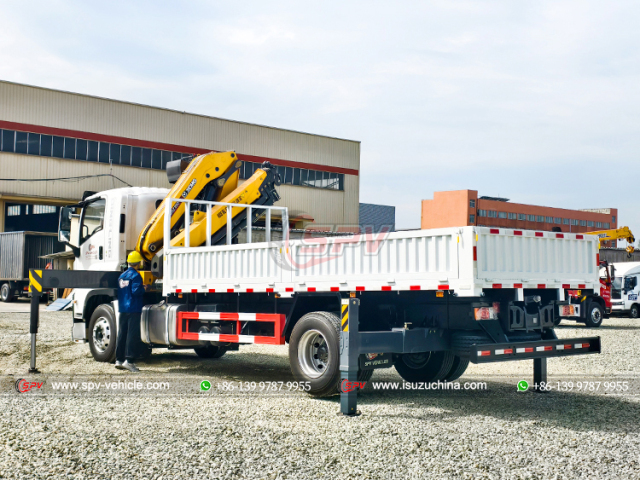

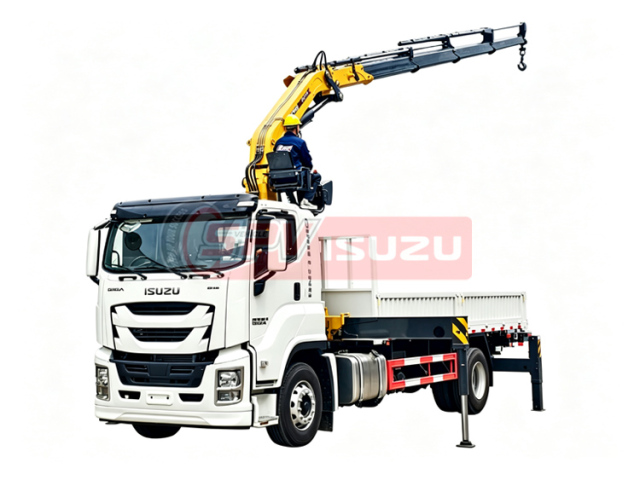

| Telescopic Crane Truck ISUZU ( 10 tons cargo truck with crane ) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 9340*2530*3640 mm | |
| GVW / Kerb Weight | 18,000 kg / 11,740 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 240 Hp (176 KW) | |
| Displacement | 7790 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4x2, left hand drive |
| Transmission | Manual, 9-speed front, 1-reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 295/80R22.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cargo Box Dimension | 6000*2315*550 mm |
| Crane Brand | XCMG | |
| Max Lifting Capacity | 10000 kg | |
| Lifting Capacity @ Working Radius |
10000kg @ 2.0 m | |
| Max. Lifting Moment |
25 T.M |
|
| Max. Lifting Height |
13 m |
|
| Max. Working Radius |
10.3 m |
|
| Slewing Angle |
360°all rotation |
|
| All other standard accessories: Tool kit, English manual | ||
| Optional | ** Hydraulic tipper box is optional. ** Box thickness according to requirement. ** Box height could be nominated. |
|

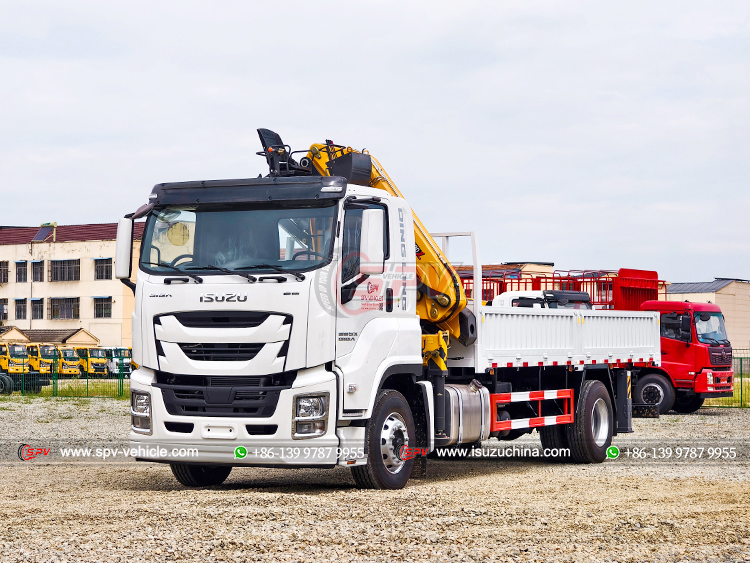

10 Ton Cargo Truck Mounted Crane ISUZU - Front Left

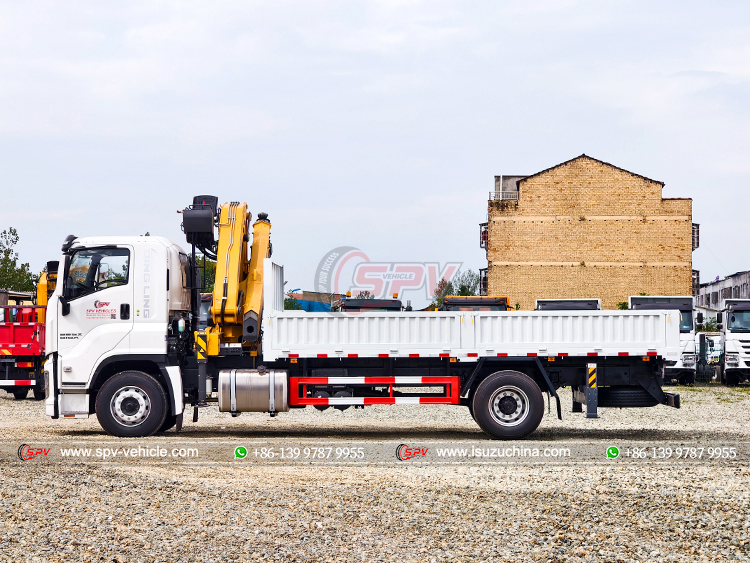

10 Ton Cargo Truck with Telescopic Crane ISUZU - Left
