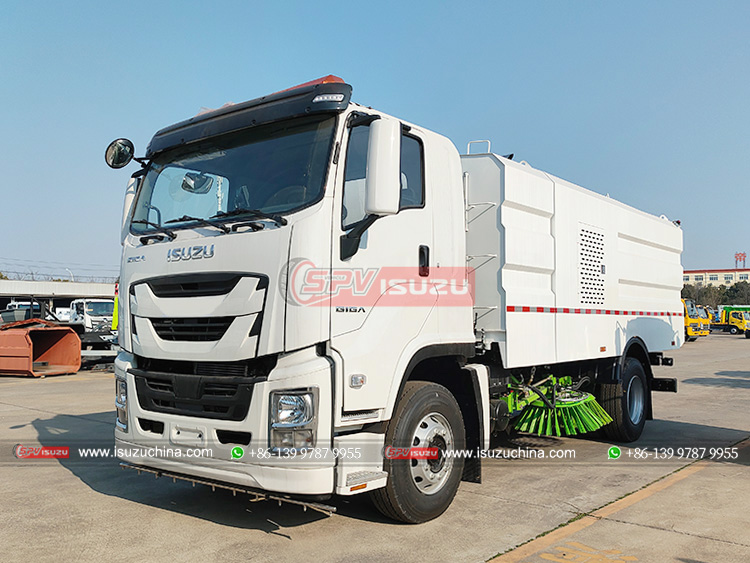

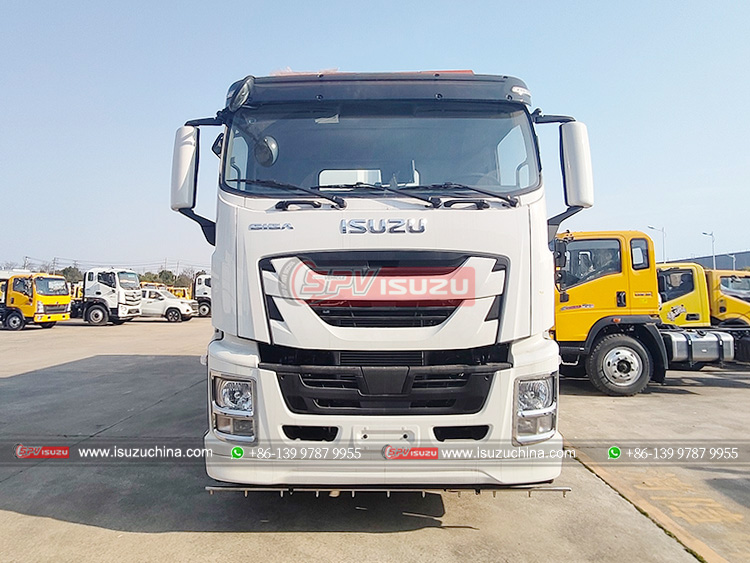

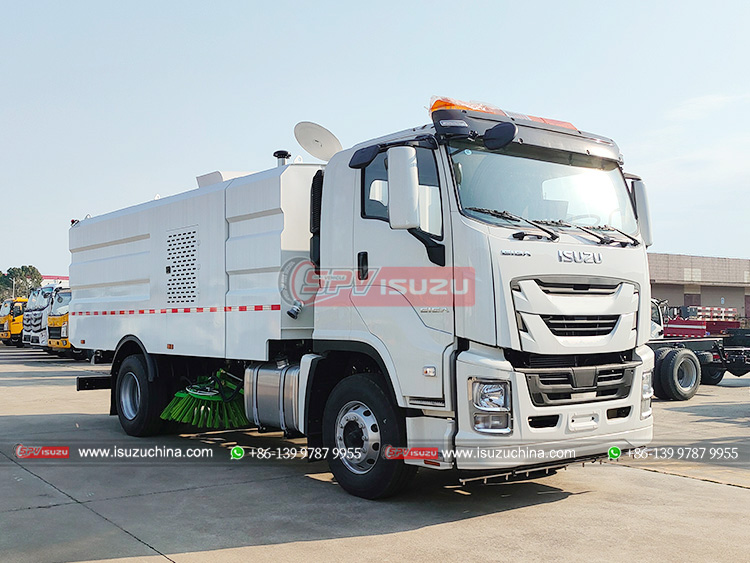

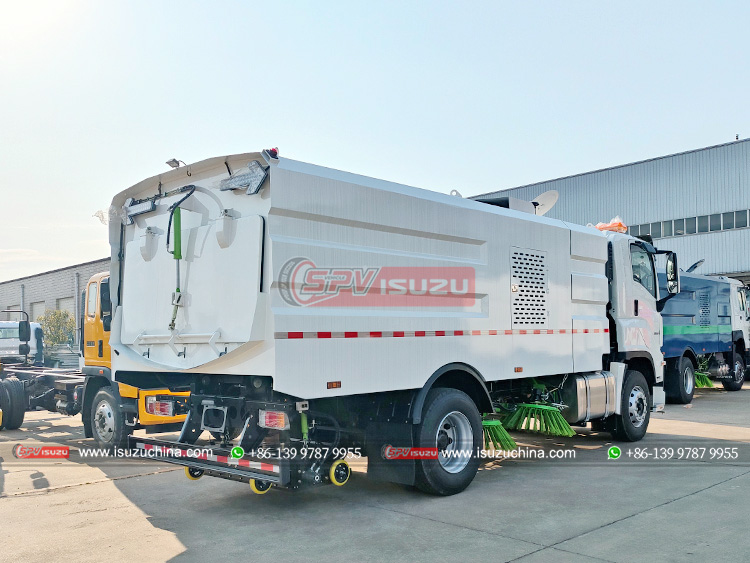

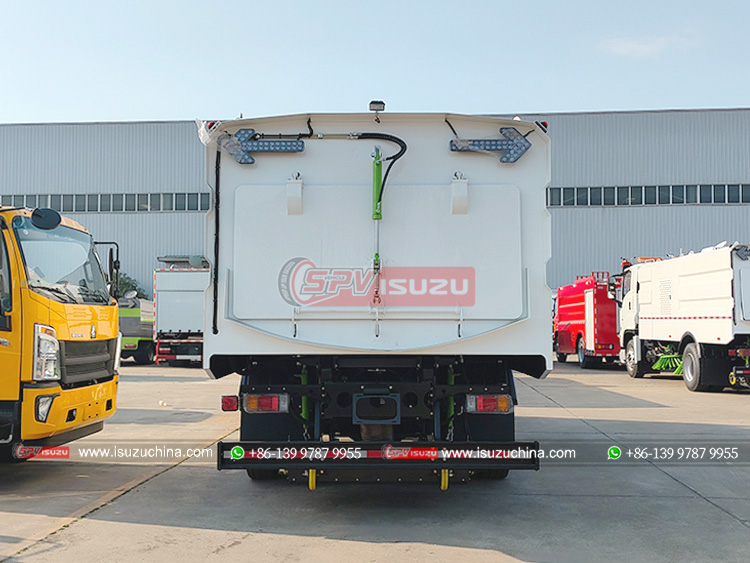

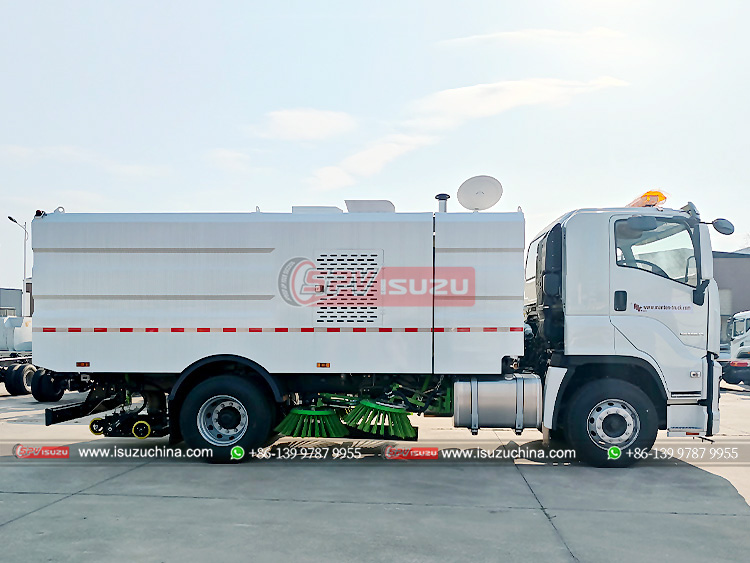

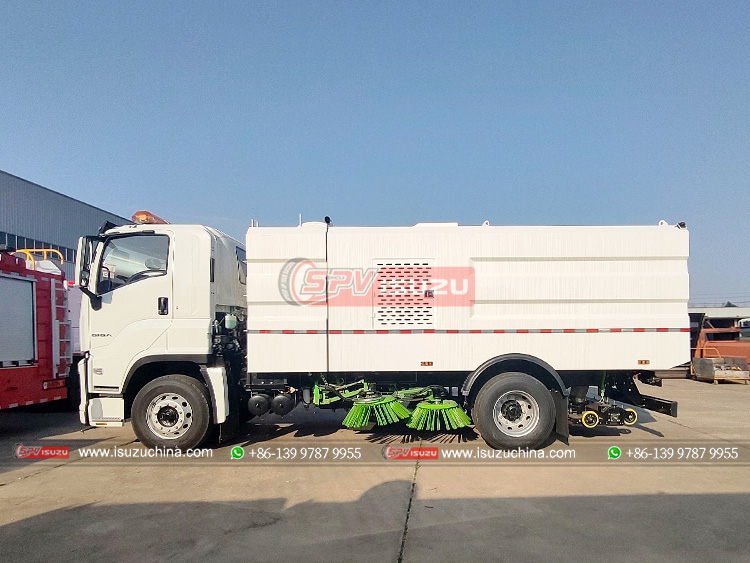

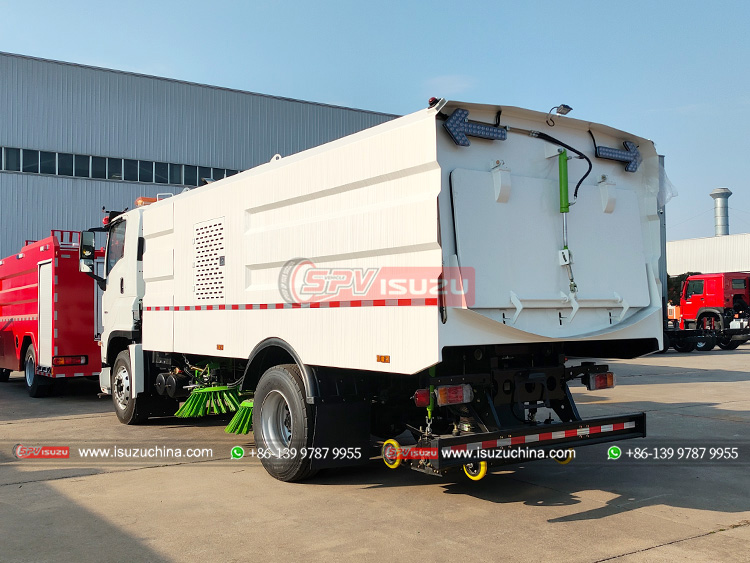

ISUZU 4X2 Giga Road Sweeping Truck for Sale

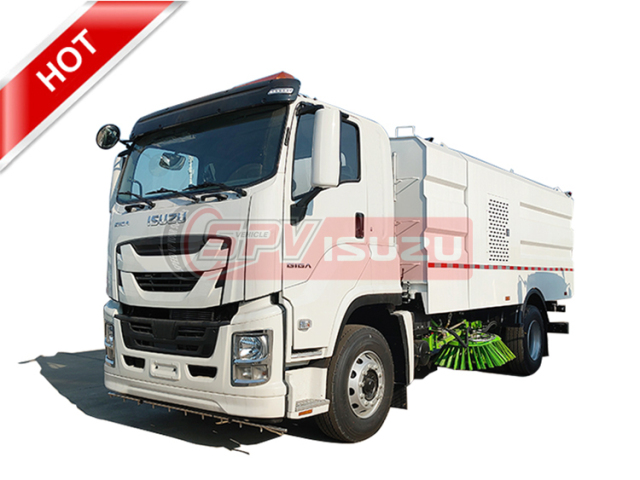

Street Sweeper ISUZU GIGA

4x2 GIGA Road Sweeper

Tags

street cleaning truck

street cleaner sweeper

municipal vehicles

road sweeper truck

road cleaning truck

road washing truck

road sweeping truck

street sweeper

PRODUCT DETAILS

Function:
Street sweeping truck (also called street sweeping truck, road clean truck, street sweeper truck, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle) is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.

Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin and water tank are made of stainless steel, corrosion-resistant, durable.
---- All electronic control integrated inside the cabin, convenient operation.
---- Noise reduction to minimize disturbance to urban life.
---- Suction nozzle is floating type, self-adjustable for different road condition.
---- Air blower is special for road sweeper, high efficient, low noise, wearable.

Specitfication:

Street Sweeping Truck ISUZU (4X2 ISUZU GIGA)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	8100 * 2550 * 3080 mm
	GVW / Kerb Weight	22,000kg / 10,200kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	350 Hp (257 KW)
	Displacement	9839 ml
	Emission Standard	Euro VI
Chassis	Drive Type	4X2, left hand drive
	Transmission	Manual, 12 -speed forward, 2-reverses
	No. of Axles	2
	Tyre Specification	385/65R22.5 20PR
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	105 km/h
	Paint	Metallic paint
Superstructure	Water Tank	Stainless Steel
	Dustbin Material	Stainless Steel
	Dustbin Capacity	8 CBM
	Water Tank Capacity	2 CBM
	Sweeping Capacity	42,000 m³/h
	Sweeping Speed	3-15 km/h
	Max Sweeping Width	2800mm
	Brooms	2 sets at each side
	Vacuum	Created by powerful air blower driven by auxiliary engine
	Suctions	Wet suction and dry suction Middle suctions
	All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional	Backup alarm can be equipped. Camera can be equipped. ** Air blower can be of stainless steel.
