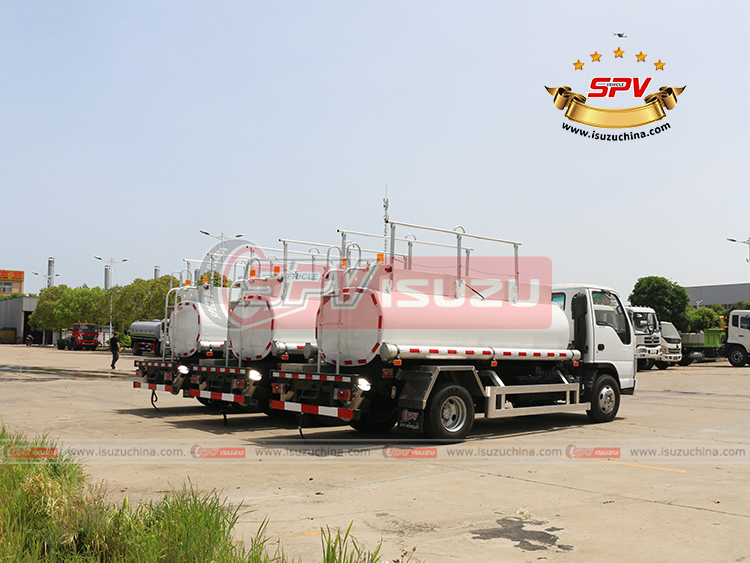

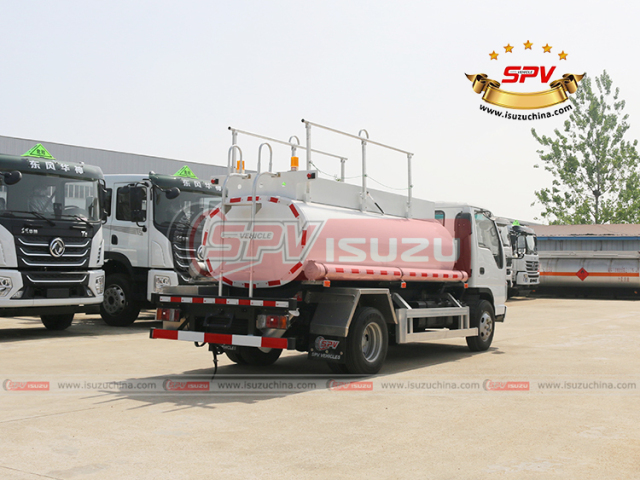

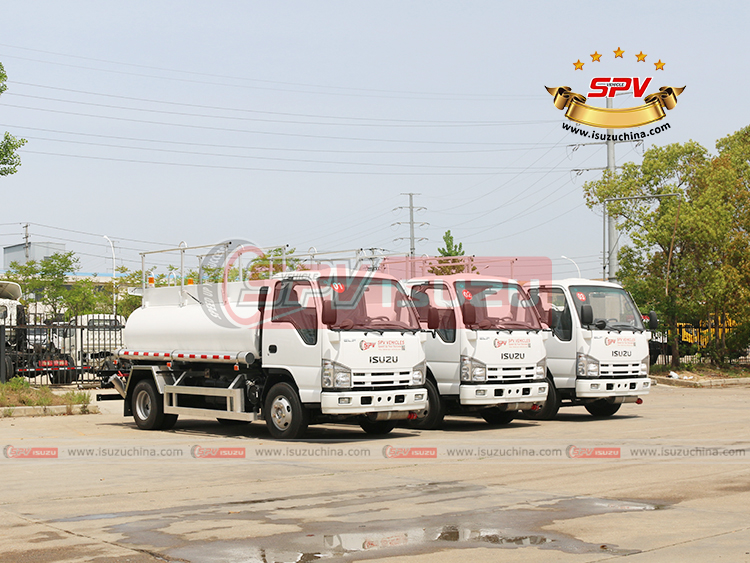

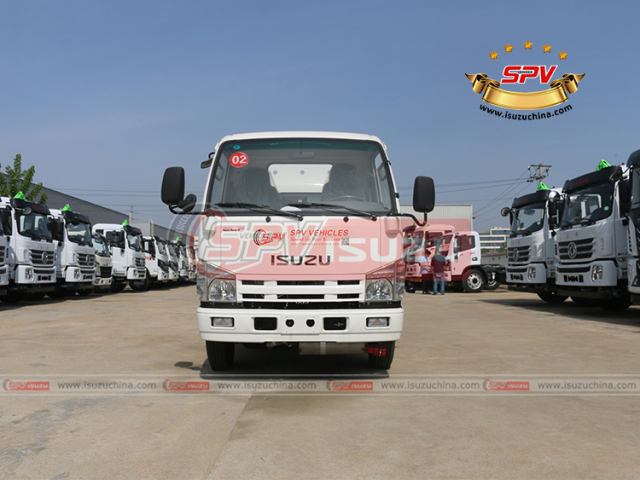

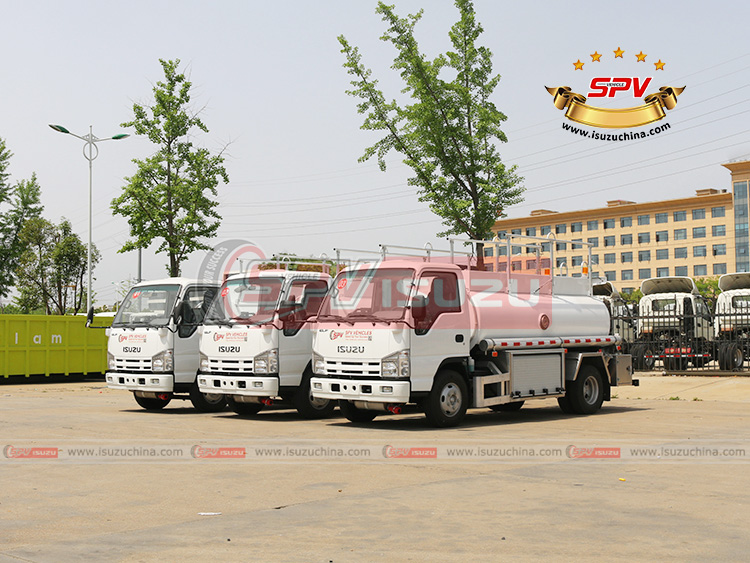

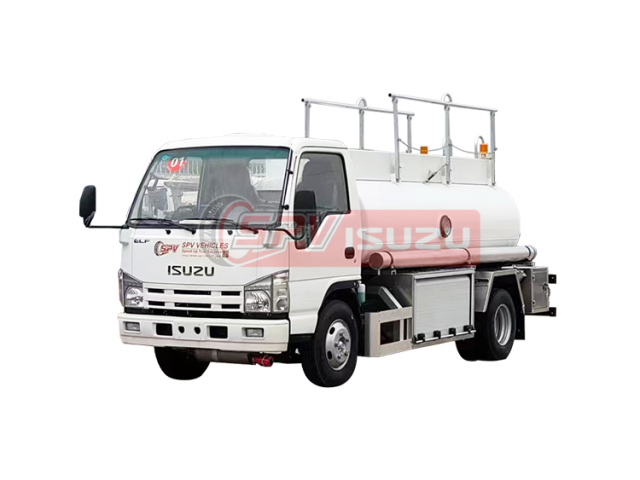

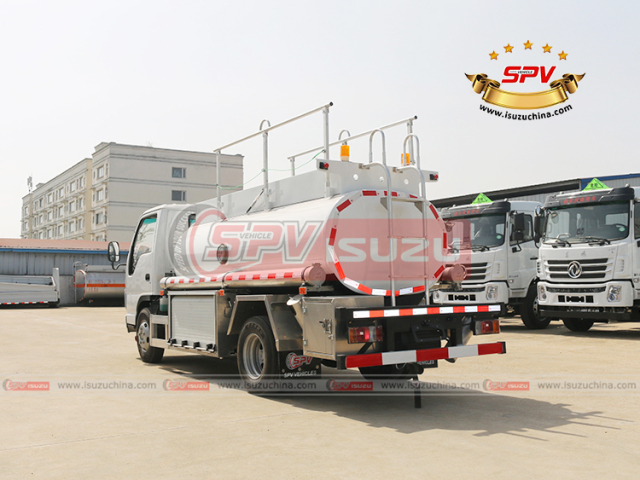

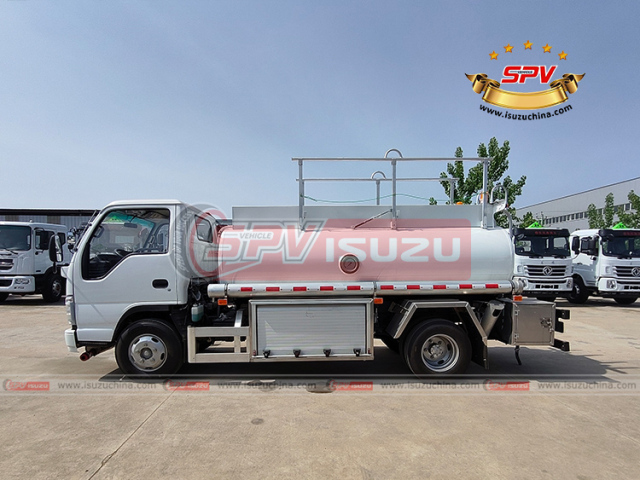

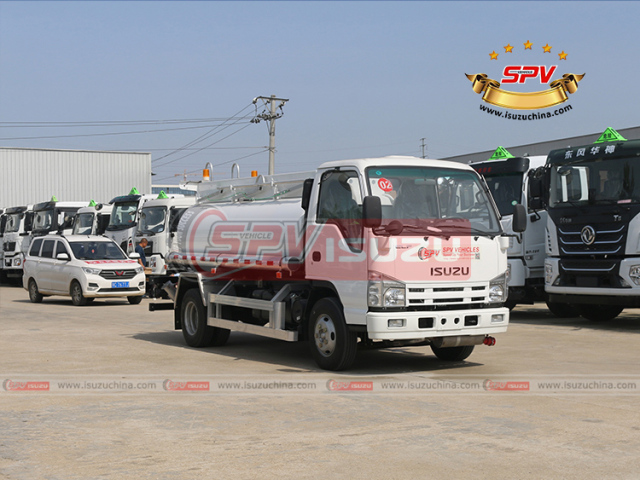

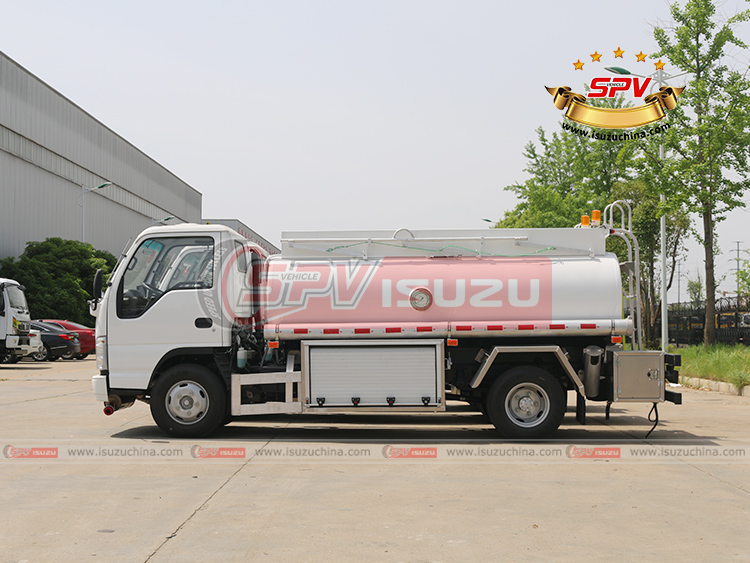

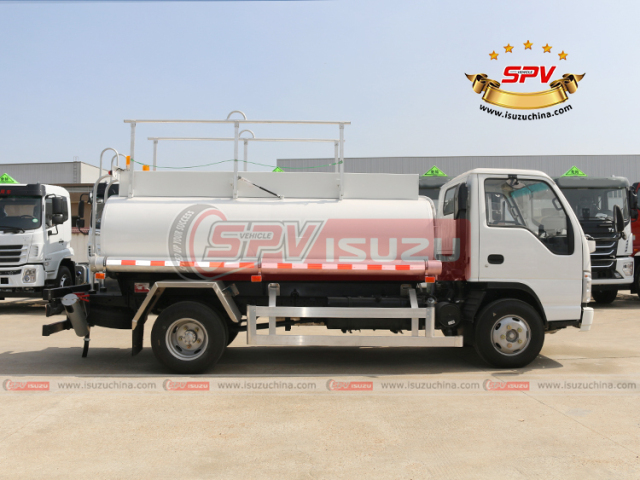

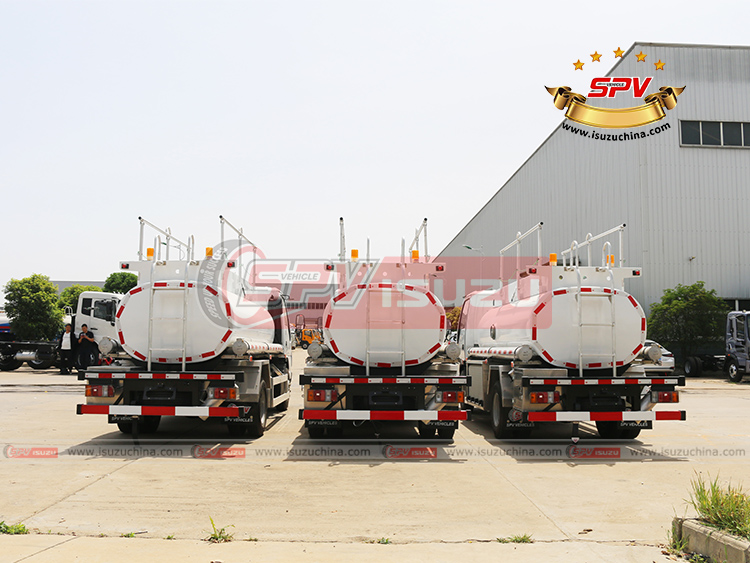

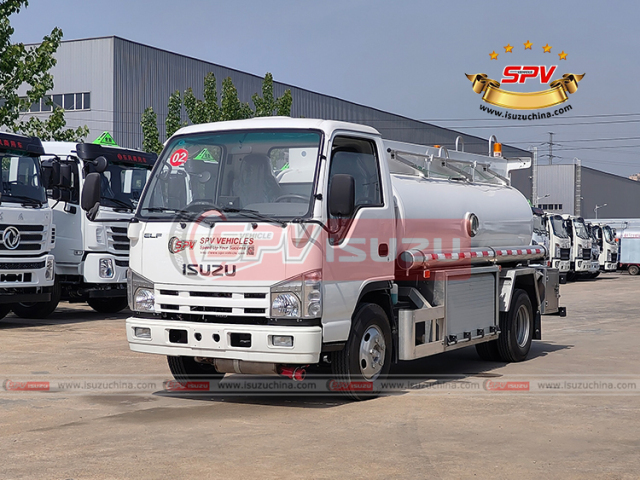

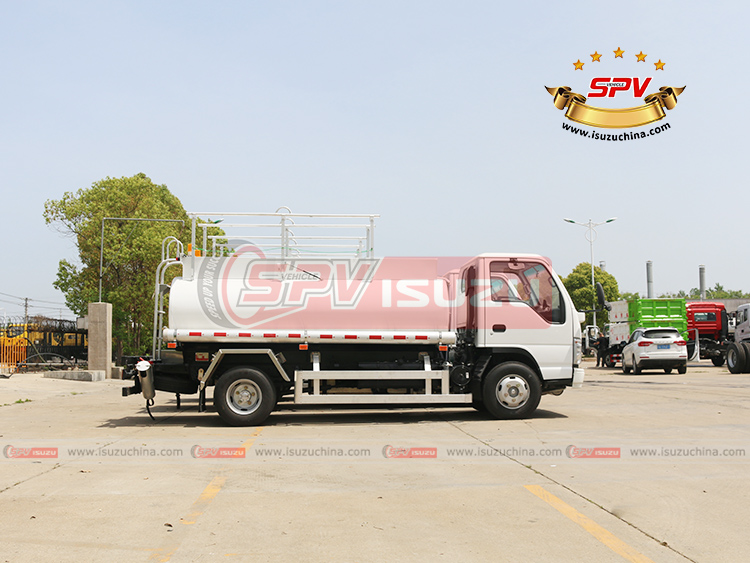

| Refueling Tank Truck ISUZU ( 4,000 litres fuel tanker) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 5980 * 1900 * 2200 mm | |
| GVW / Kerb Weight | 7,300 kg / 3,200 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4KH1CN5MD | |
| Power | 115 Ps (84 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission |
ISUZU MSB 5 speed forward, 1 reverse
|
|
| No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 4,000 Litres (About 1,000 gallons) |
| Tank Material | Stainless steel | |
| Pump |
Chinese top brand
|
|
| Suction Head | 6 m | |
| Hose | High quality PVC hose, anti-aging | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional | * Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Imported American mechnical pump Blackmer ** Imported American electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
