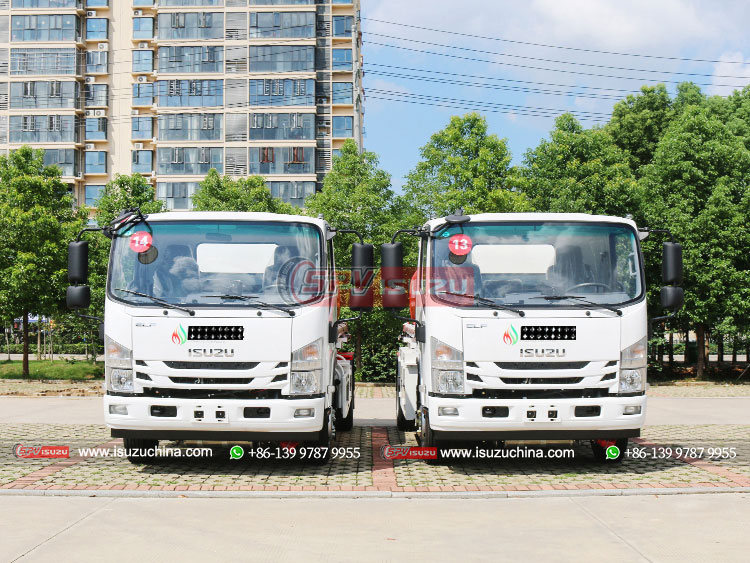

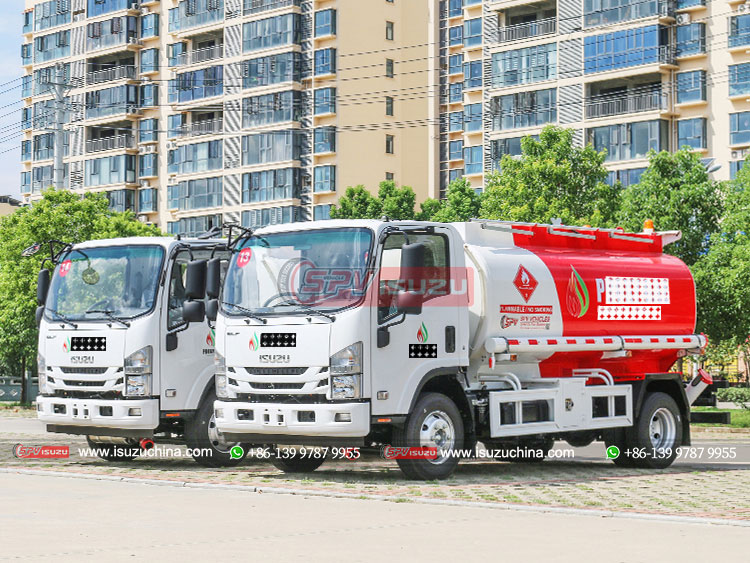

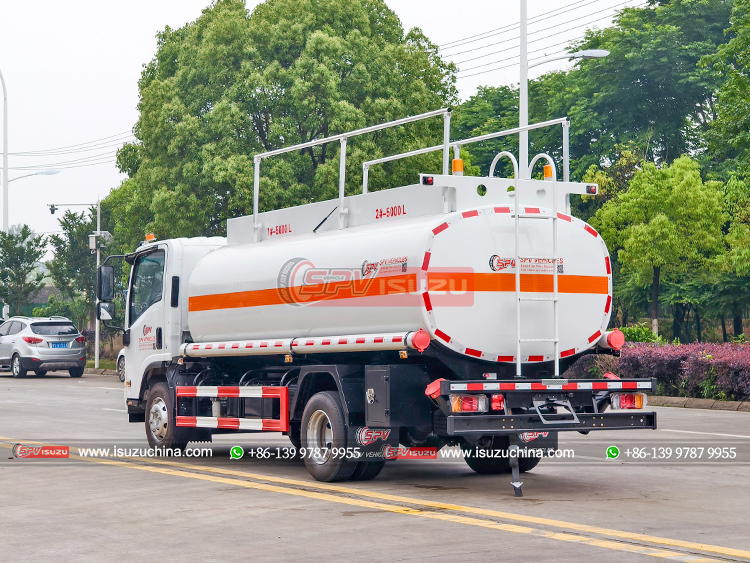

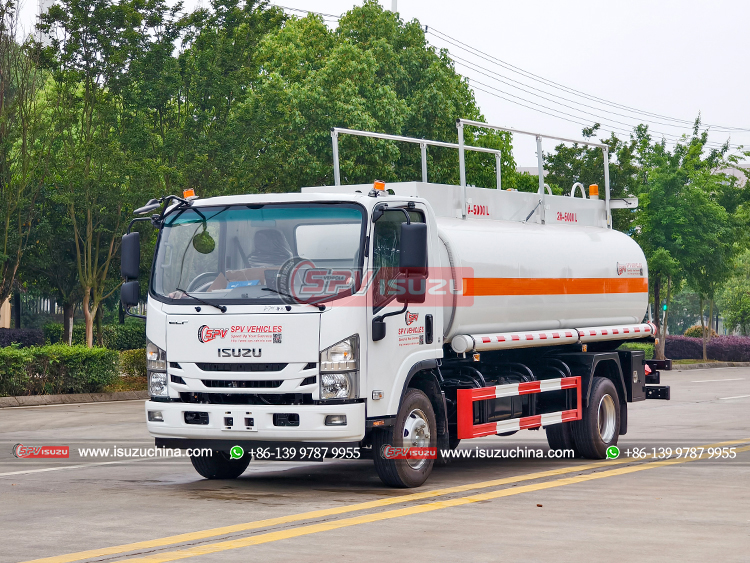

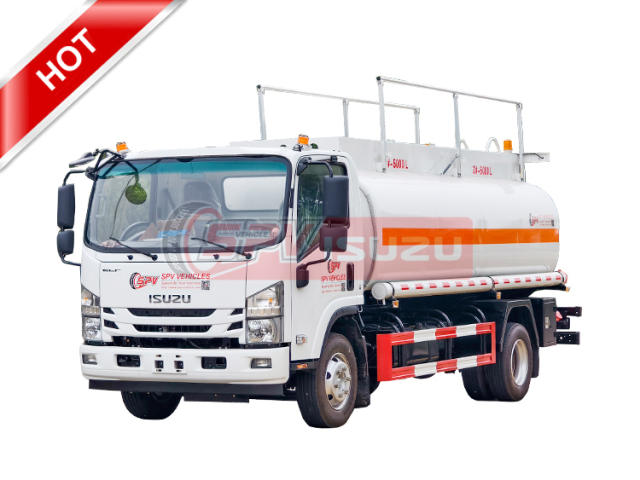

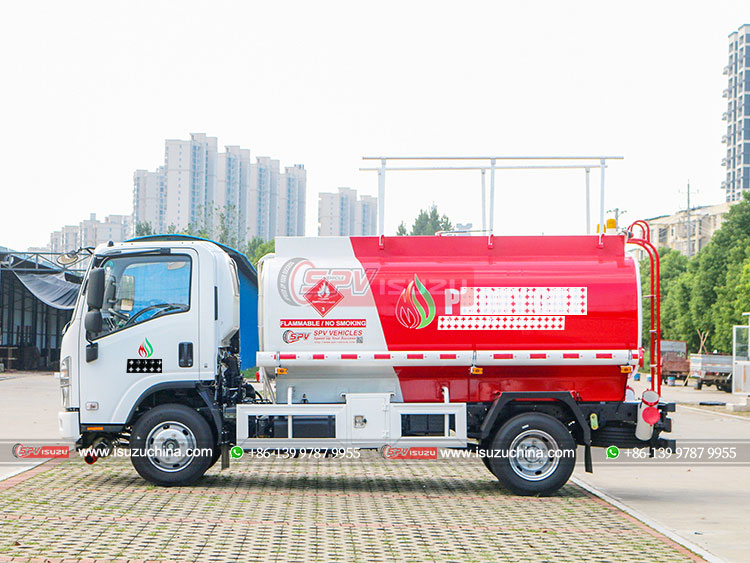

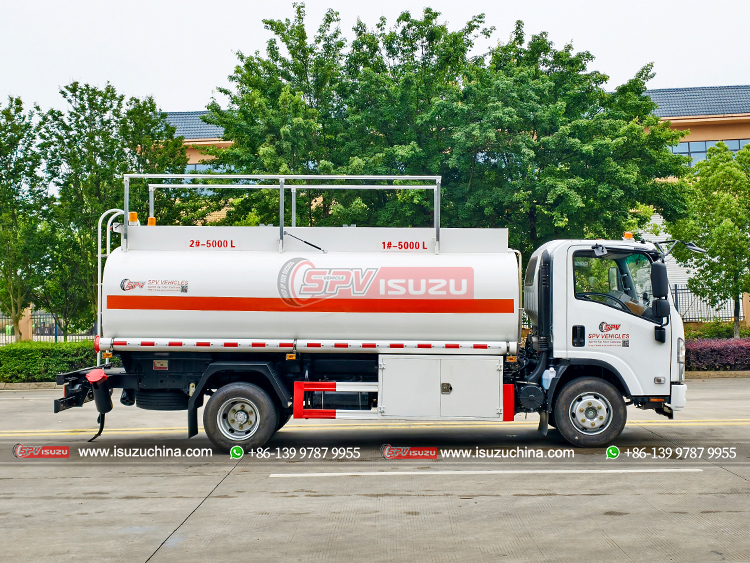

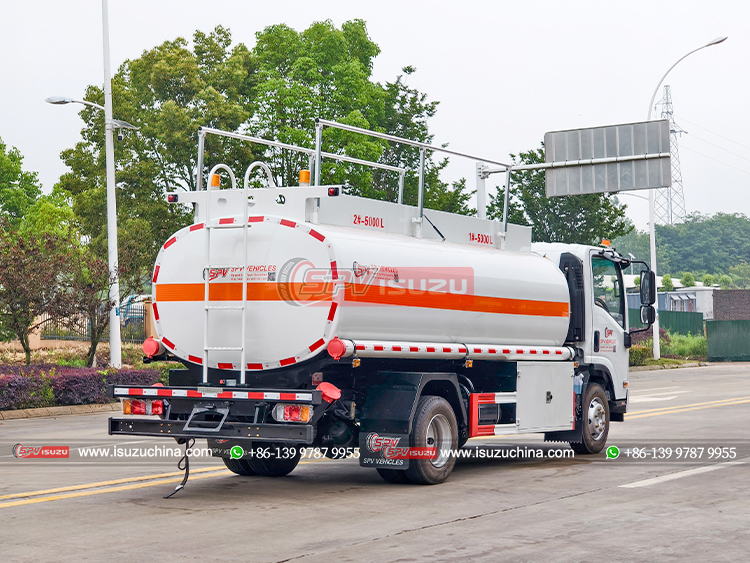

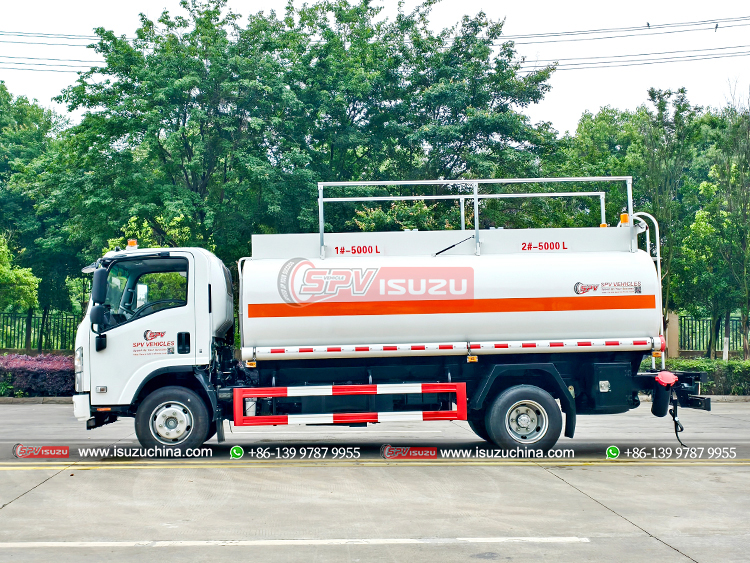

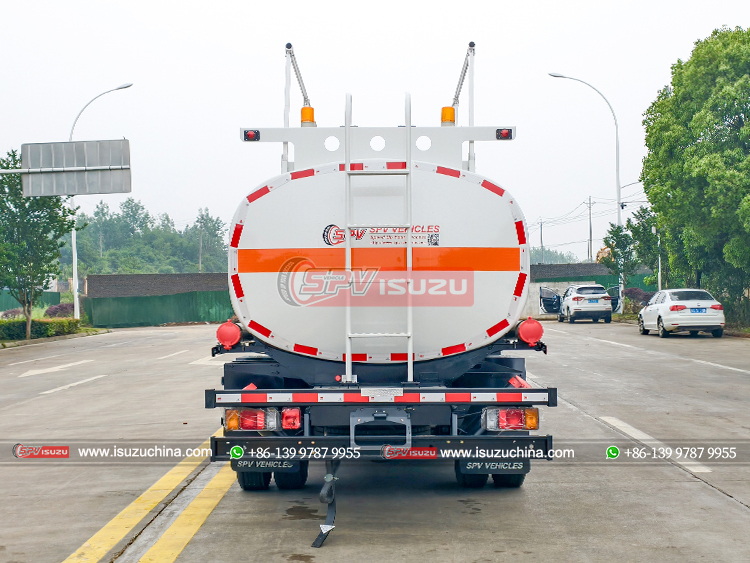

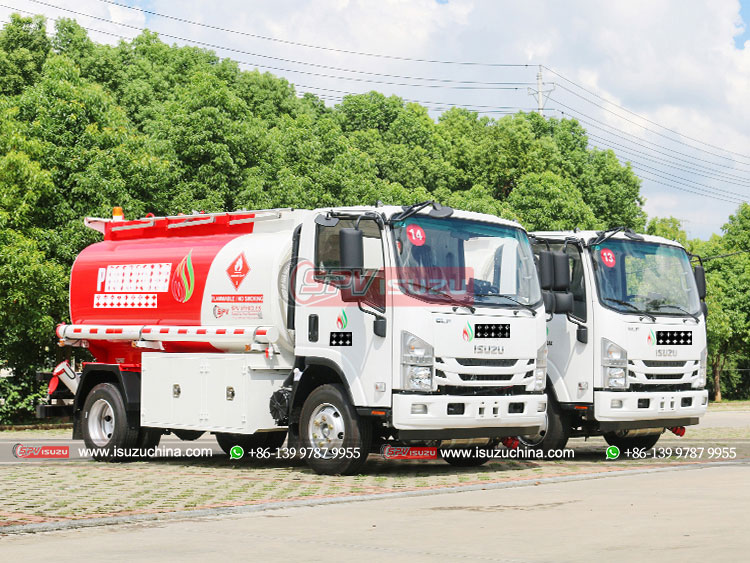

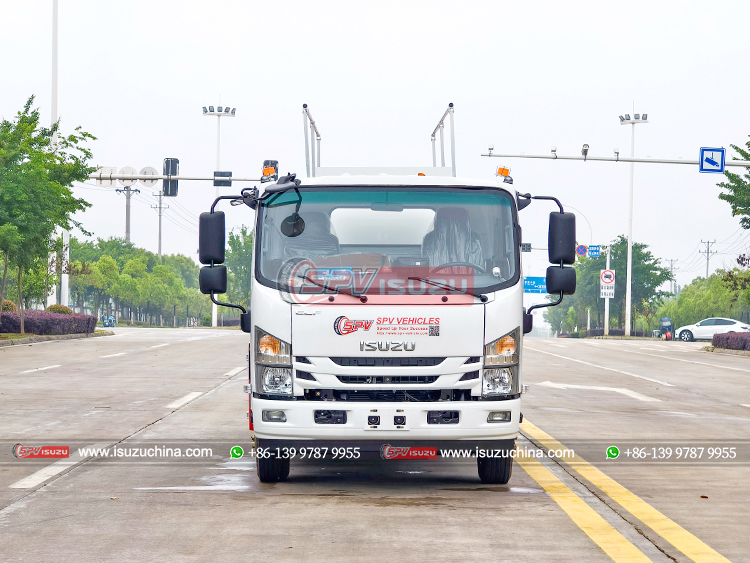

| Refueling Truck ISUZU 700P ( 10,000 litres highway fuel tank truck ) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7050 * 2160 * 2770 mm | |
| GVW / Kerb Weight | 10,550 kg / 5,360 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 205 Ps (150 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro VI | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, 6 speed forward, 1reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 235/75R17.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 10,000 Litres (About 2,600 gallons) |
| Tank Material | Carbon steel | |

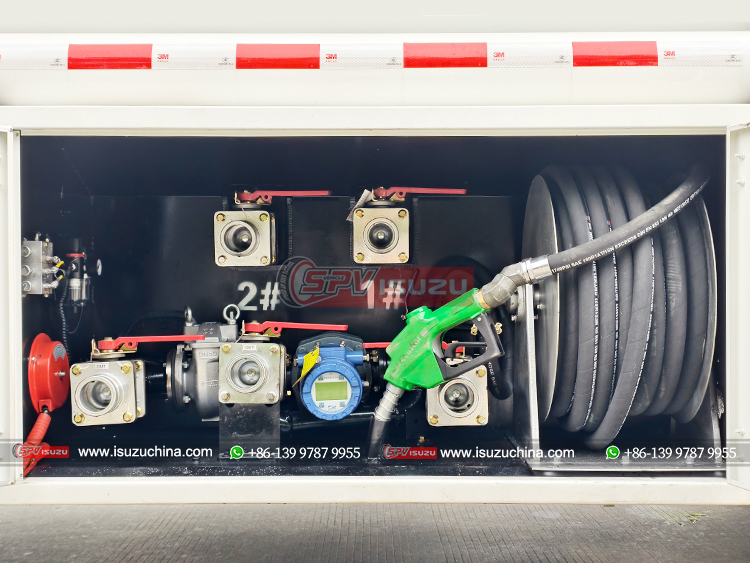

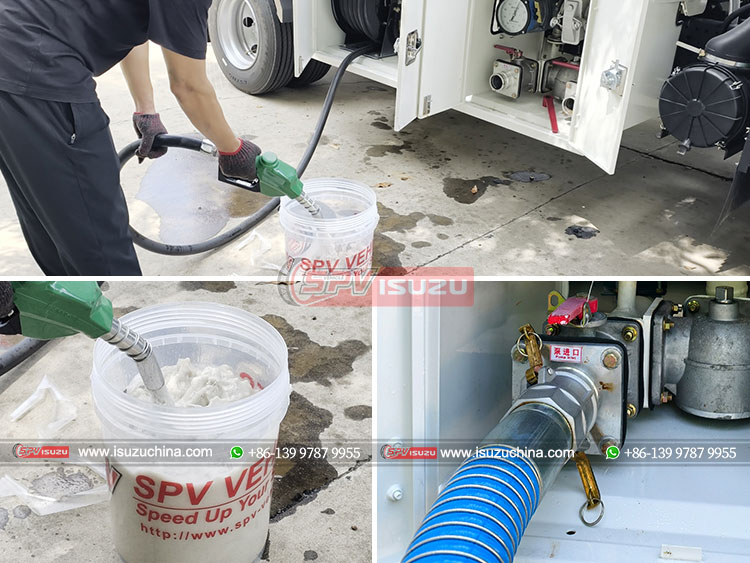

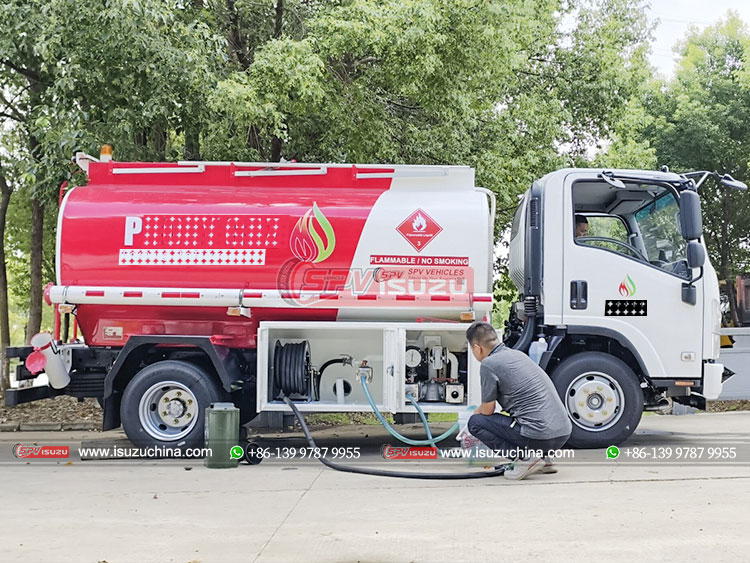

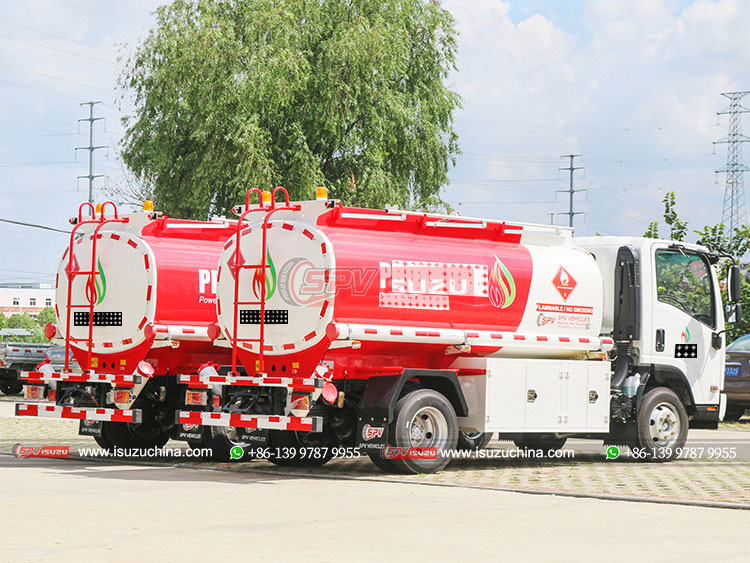

| Pumping & Counting System | PTO driven pump equipped for overhead delivery two discharge by two options: 1.PTO, flow meter 25M hose reel; 2.PTO, pump big hose with coupling |
|
| Hose | High quality PVC hose, anti-aging | |

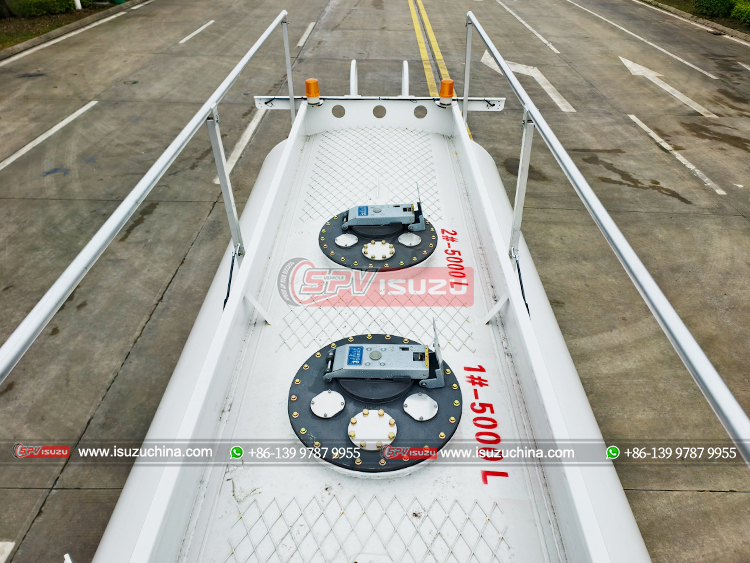

| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional | * Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Imported American mechnical pump Blackmer ** Imported American electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
